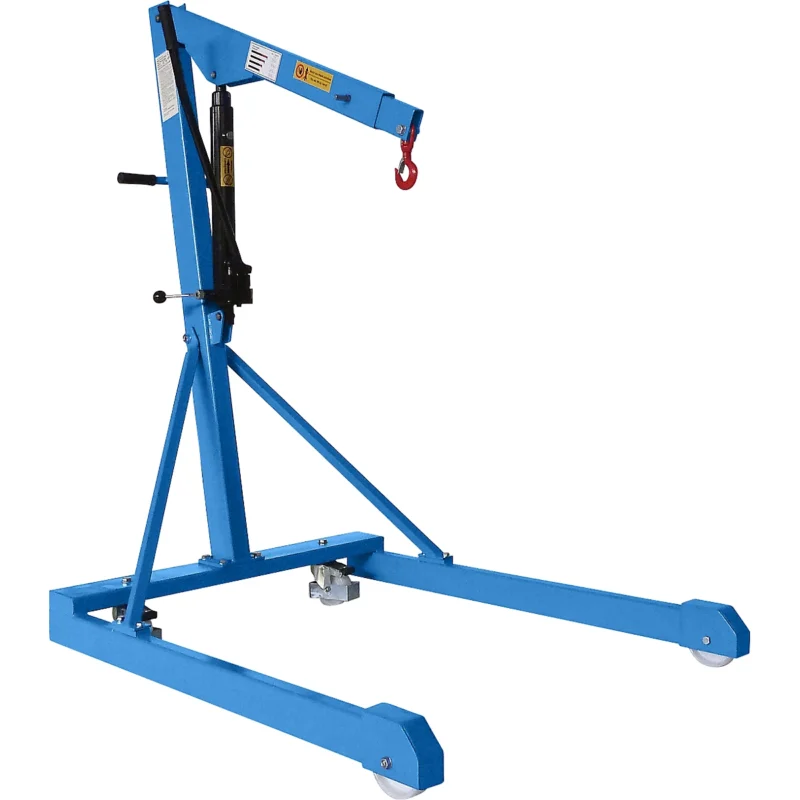

Blue Workshop Crane Max. Load 500 Kg, Parallel Chassis For Sale
This Workshop Crane is designed to make lifting and lowering heavy loads in your workspace quick and efficient. With a versatile, adjustable crane jib and easy-to-use features, this crane is perfect for everyday tasks in the workshop.
Key Features:
✅ Adjustable Jib – Four positions to accommodate various load sizes
✅ 360° Rotating Safety Crane Hook – Provides flexibility for precise lifting
✅ Finely Adjustable Valve – Allows for precise lowering of heavy loads
✅ Durable Steel Construction – Ensures reliability and stability
✅ Parallel Chassis – Allows Euro pallets to be straddled sideways for faster processing
✅ Space-Saving Design – Can be disassembled for easy storage

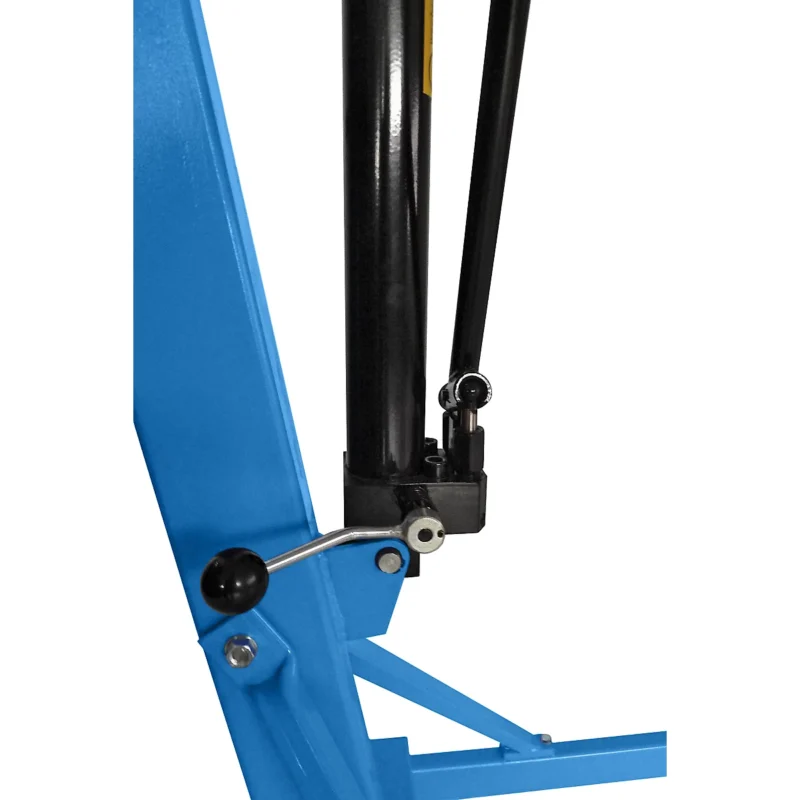

✅ Pump Lever on the Side – Convenient monitoring of the lifting and lowering process

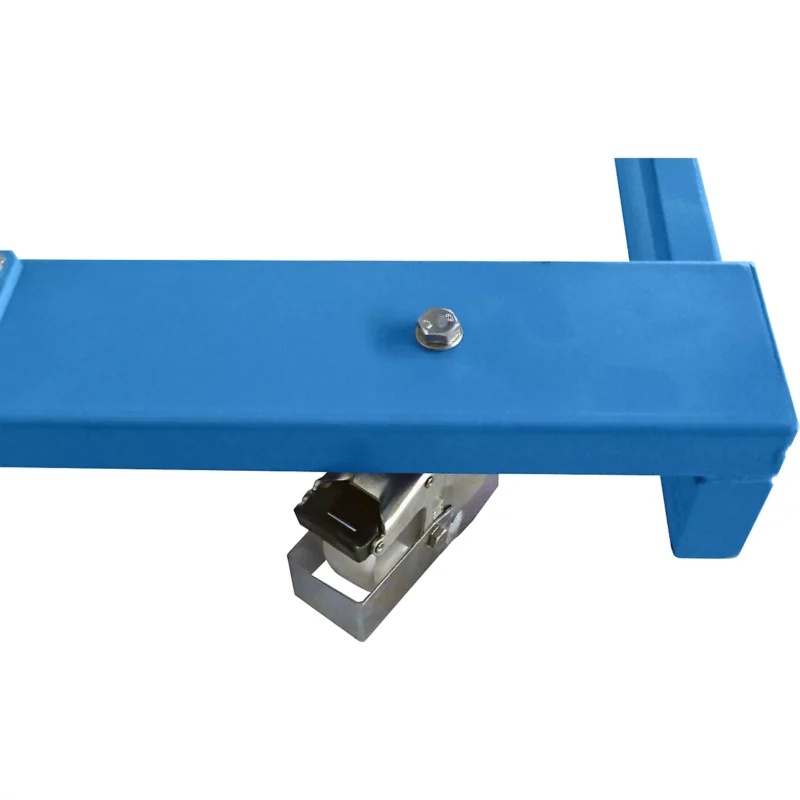

✅ Foot Protection – Added safety feature
✅ Steering Wheels with Wheel Stops – Ensures secure positioning during operation
✅ Custom Models Available on Request – Tailor the crane to your needs
Technical Specifications:
- Max. Load: 500 kg
- Max. Load at Jib Length (mm):
- 500 kg (at 1080 mm)
- 420 kg (at 1180 mm)
- 360 kg (at 1280 mm)
- 300 kg (at 1380 mm)
- Lifting Height (Max., Cantilever Arm Extended): 2500 mm
- Max. Crane Arm Length: 1380 mm
- Min. Crane Arm Length: 1080 mm
- Width: 975 mm
- Height: 1650 mm
- Length: 1300 mm
- Wheel Type: Nylon
- Wheel Bearing: Ball Bearing
- Fixed Wheel Diameter: 125 mm
- Steering Wheel Diameter: 100 mm
- Chassis Height: 135 mm
- Weight: 75 kg
- Colour: Light Blue RAL 5012
- Design of Crane: Parallel Chassis
- Supplied: Assembled
