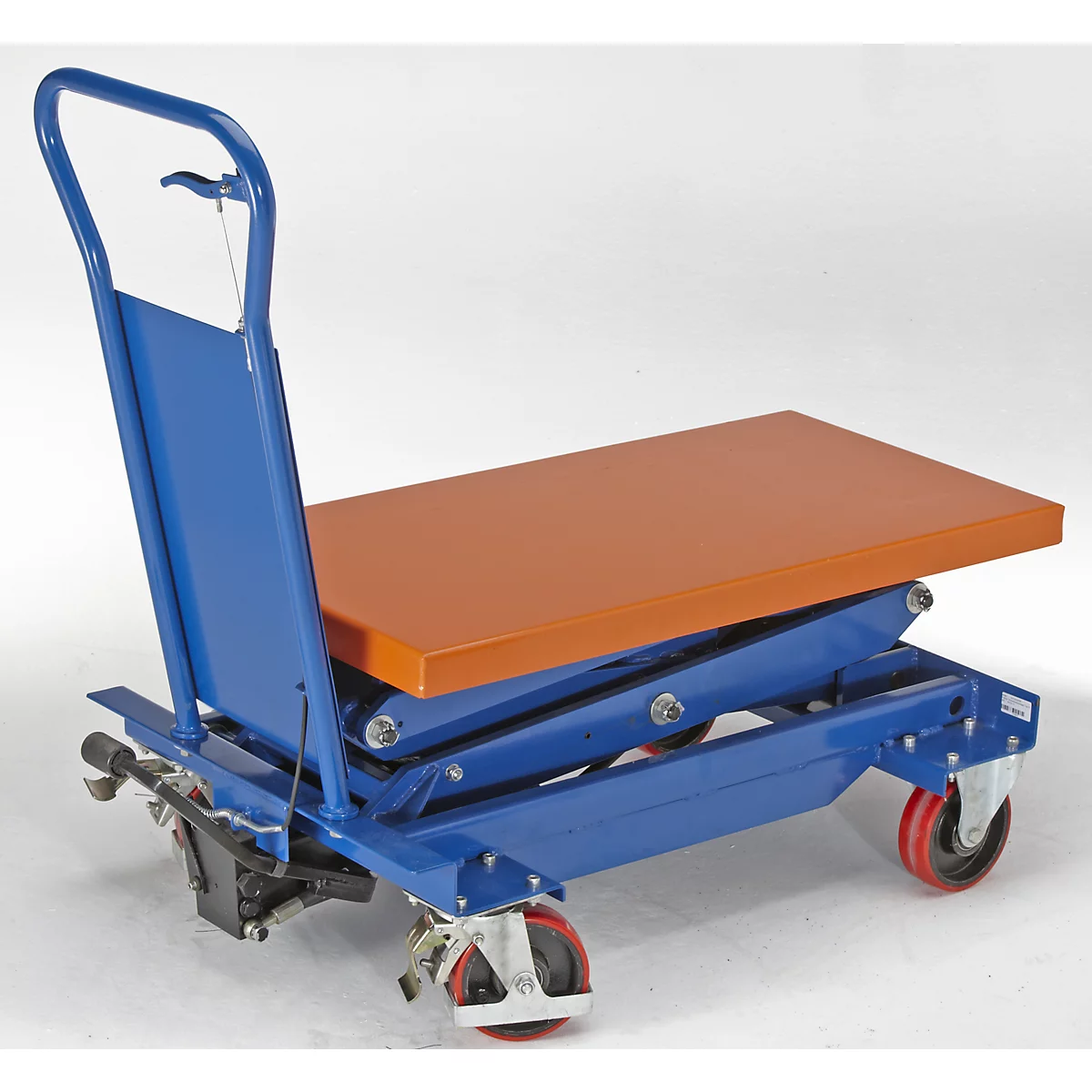

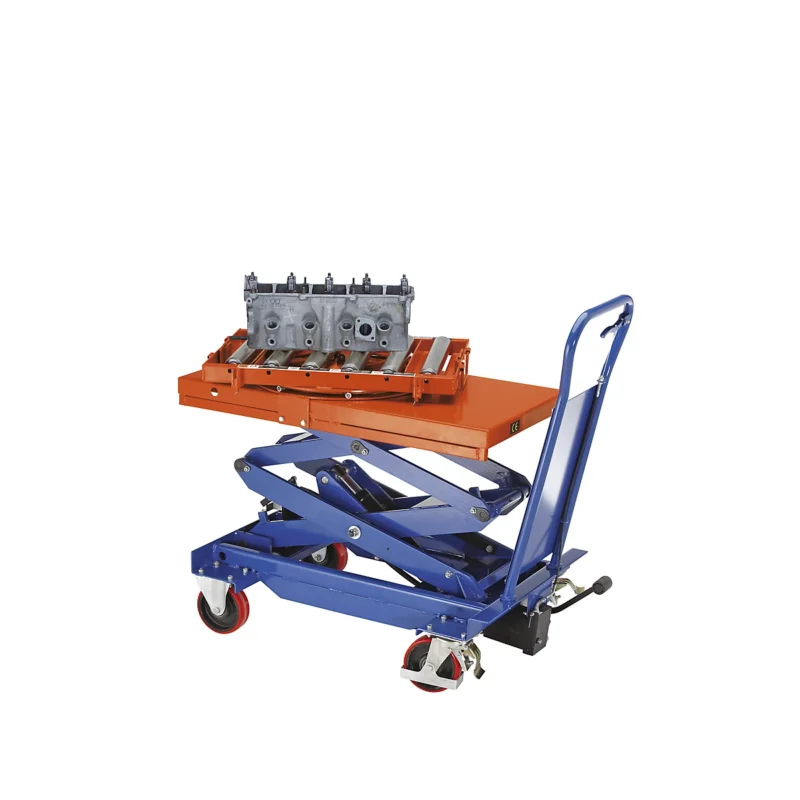

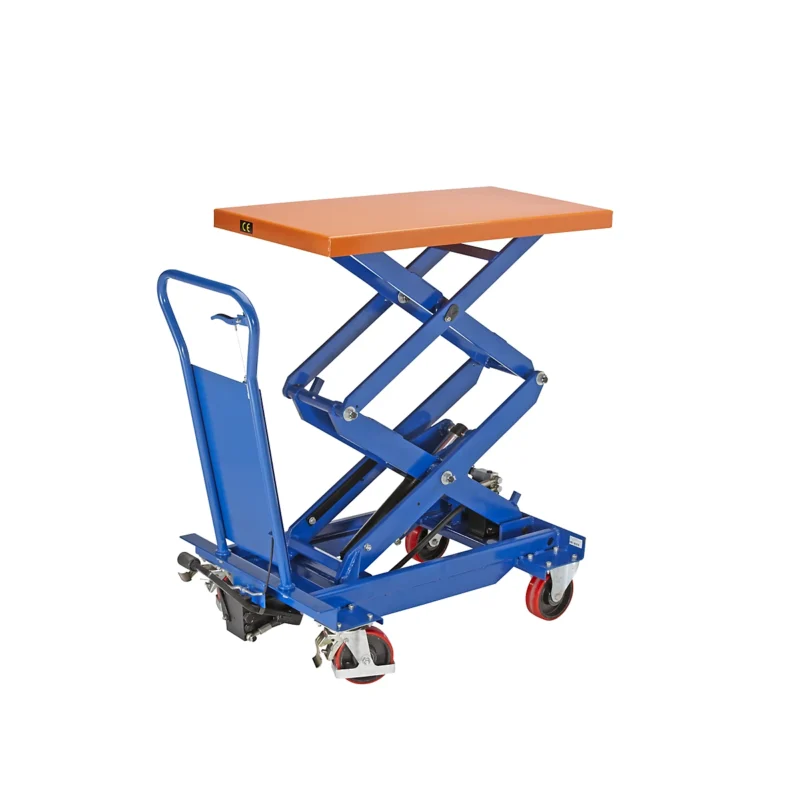

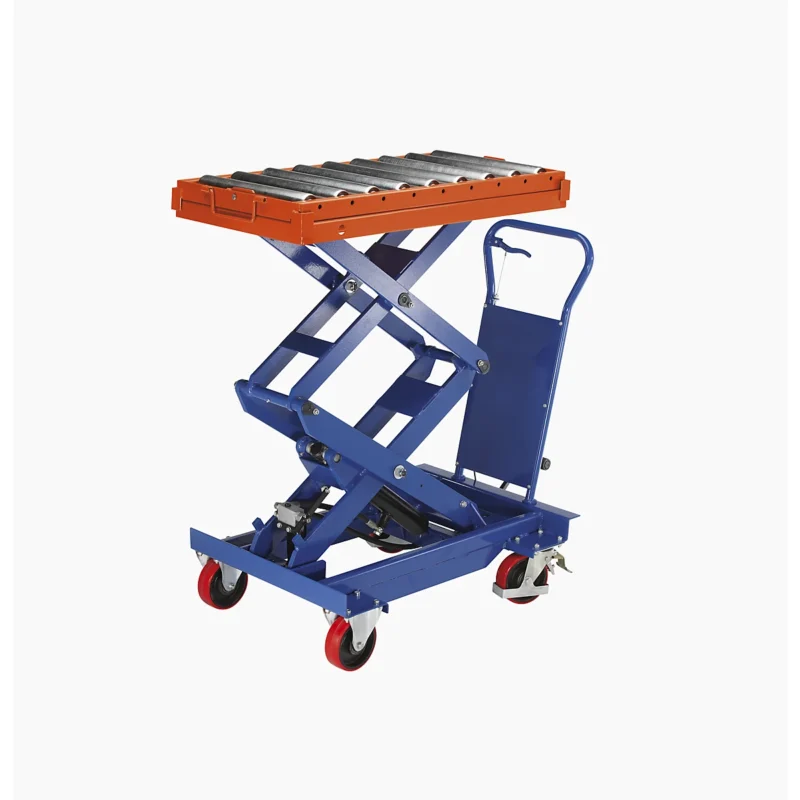

Lifting platform trolley with double scissors For Sale

The lifting platform trolley with a double scissor mechanism is the perfect solution for lifting and transporting heavy loads in warehouses, production facilities, and logistics. With enhanced stability and an increased lifting range, this trolley makes ergonomic material handling effortless, reducing strain on the spine and ensuring safe and efficient workflows.

Key Features:

✅ Extended Lifting Range for Maximum Flexibility

• Lifting range of 470 – 1410 mm, ideal for shelving units & machinery.
• Double scissor mechanism for higher lifting capacity compared to single scissors.

✅ Smooth & Precise Lifting & Lowering

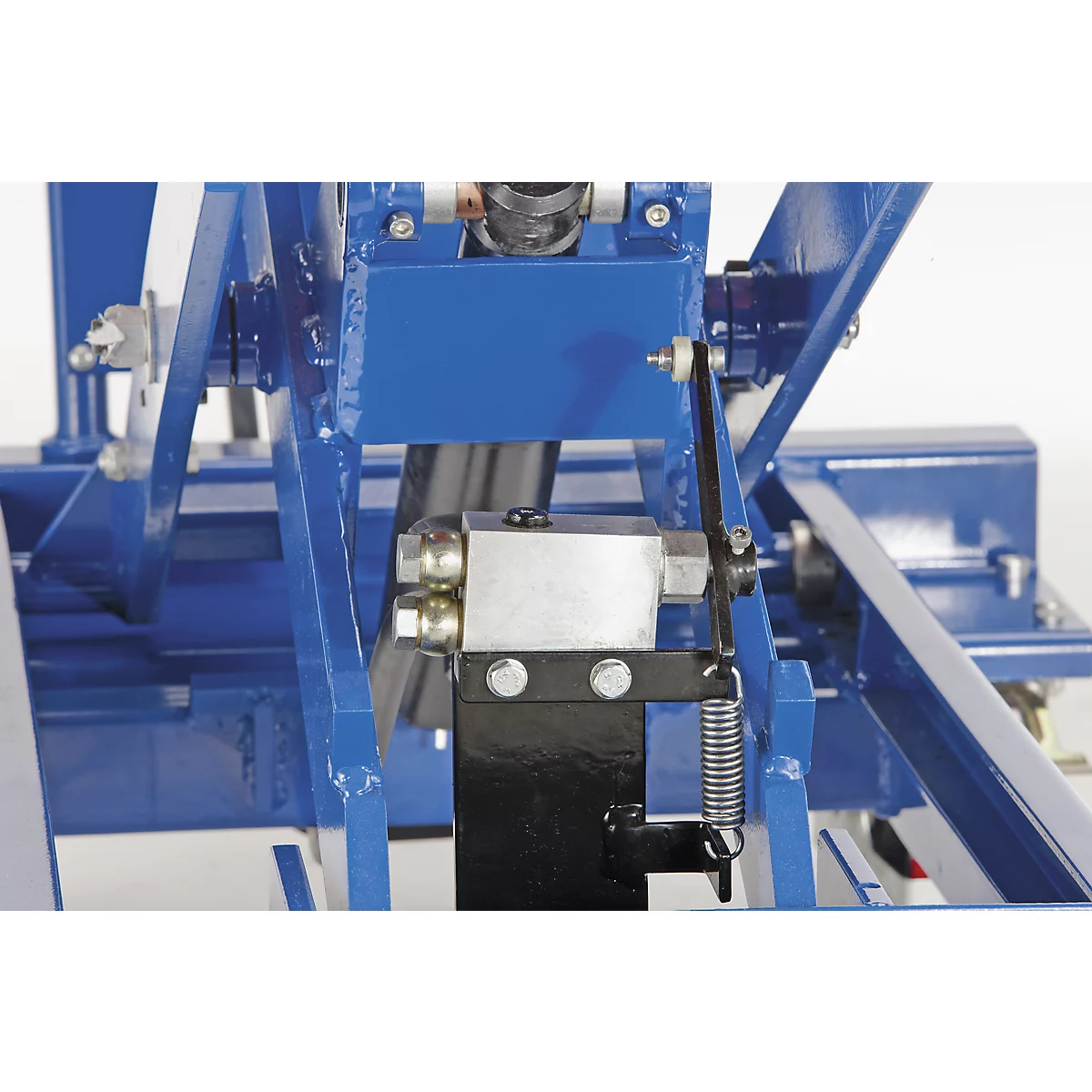

• Foot-operated pump pedal for easy lifting.
• Soft-stop valve ensures gentle lowering of loads.
• Continuous handle lowering system for precision control.

✅ Robust & Stable Construction

• Wider chassis & reinforced scissor mechanism for maximum stability.
• Steel platform & powder-coated frame for durability.

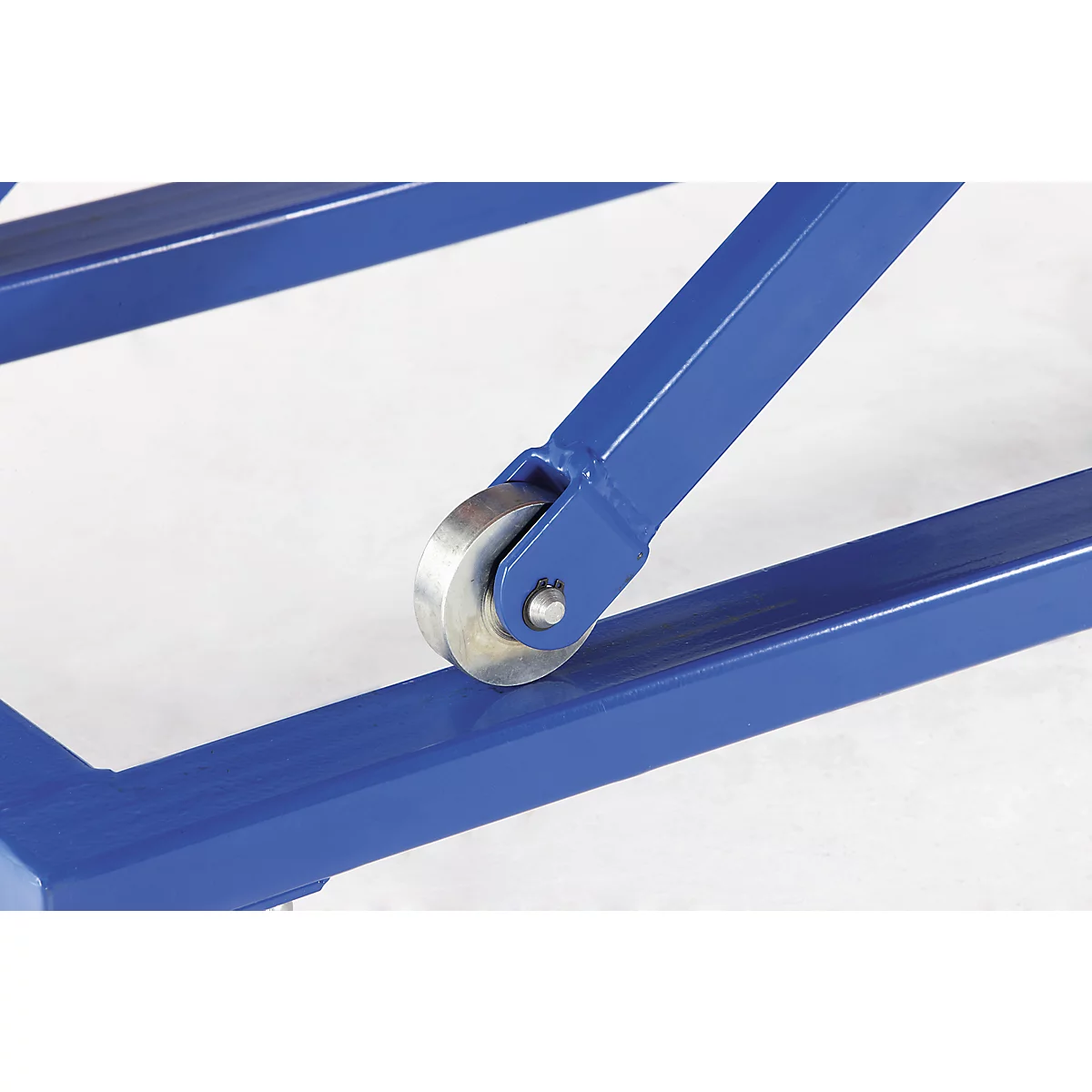

• Scissor guide wheels ensure a long service life.

✅ Safety & Maneuverability

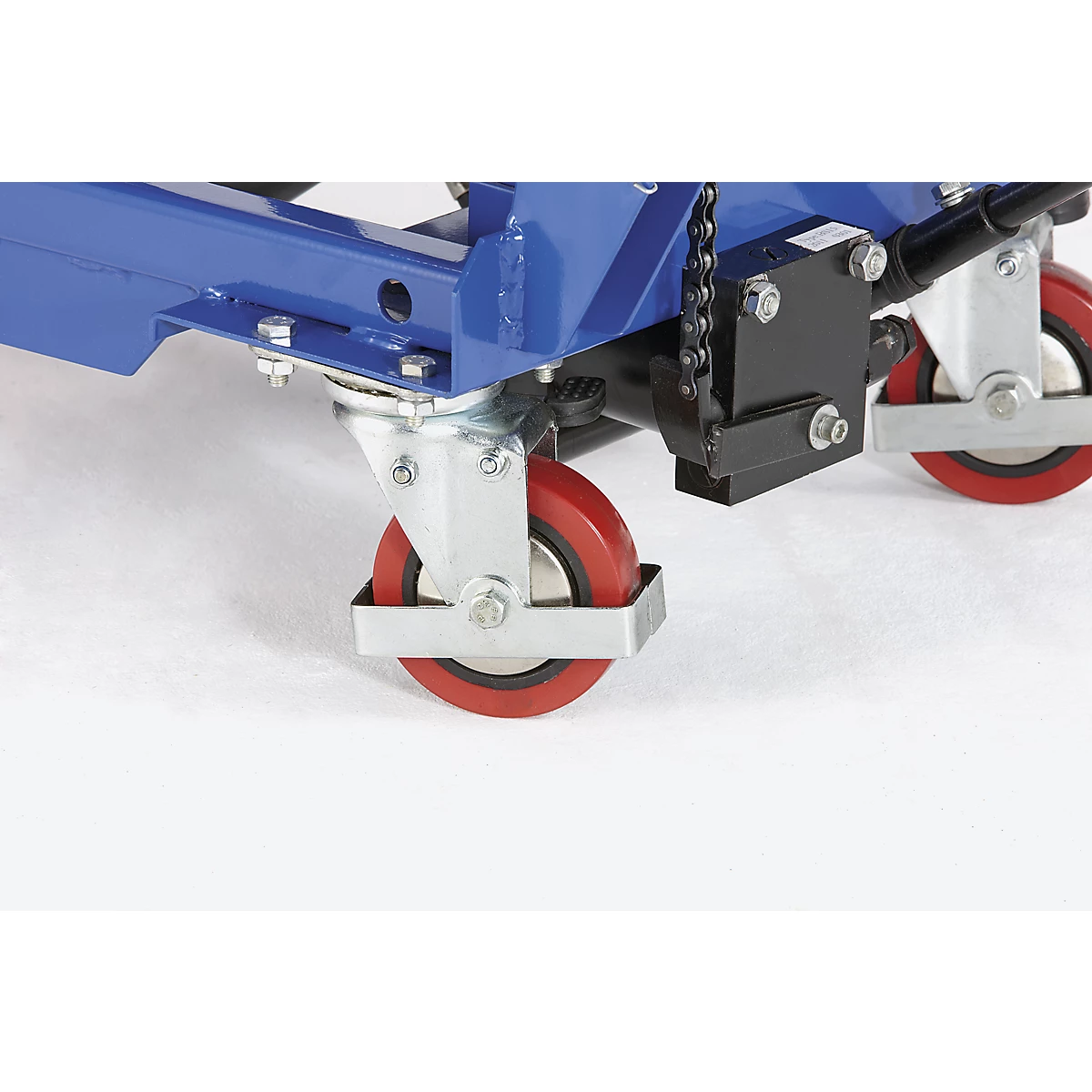

• 2 swivel castors with double stops & foot protection.
• 2 fixed castors for easy mobility.
• Non-marking polyurethane wheels protect sensitive floors.
• Inspection supports included for easy maintenance.

Technical Specifications:

• Max. Load Capacity: 650 kg
• Lifting Range: 470 – 1410 mm
• Platform Dimensions: 1010 mm (L) × 520 mm (W)
• Overall Dimensions: 1260 mm (L) × 670 mm (W)
• Pedal Strokes to Max. Lift: 95
• Platform Material: Steel, powder-coated in pure orange (RAL 2004)
• Frame Material: Powder-coated steel in signal blue (RAL 5005)
• Wheel Type: 2 swivel castors with double stops + 2 fixed castors
• Wheel Material: Polyurethane (non-marking)
• Wheel Diameter: 150 mm
• Product Type: Lifting platform trolley
• Fittings: Push handle, castors with foot protection
• Supplied: Flat pack
• Weight: 175 kg
