Scissor lift platform truck For Sale

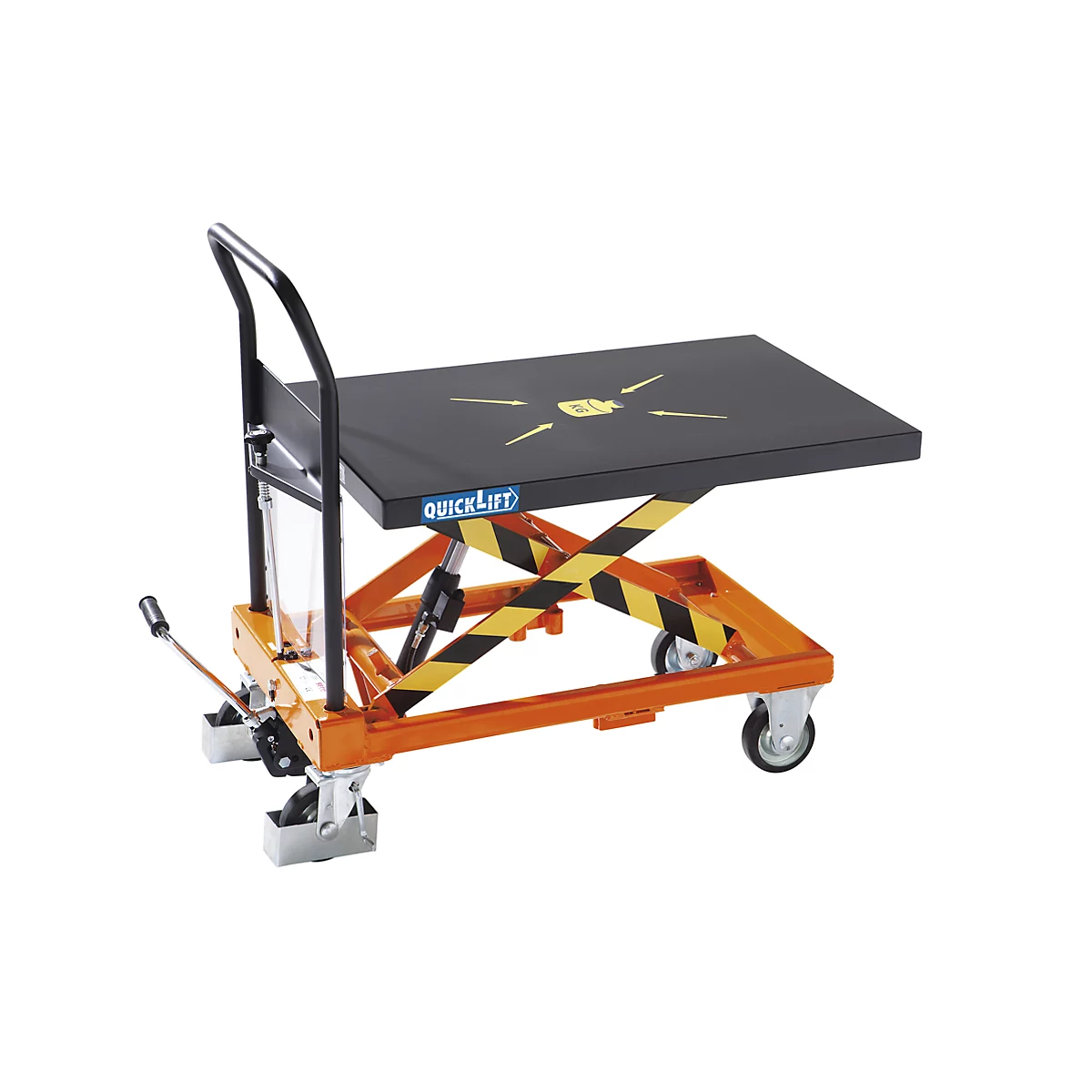

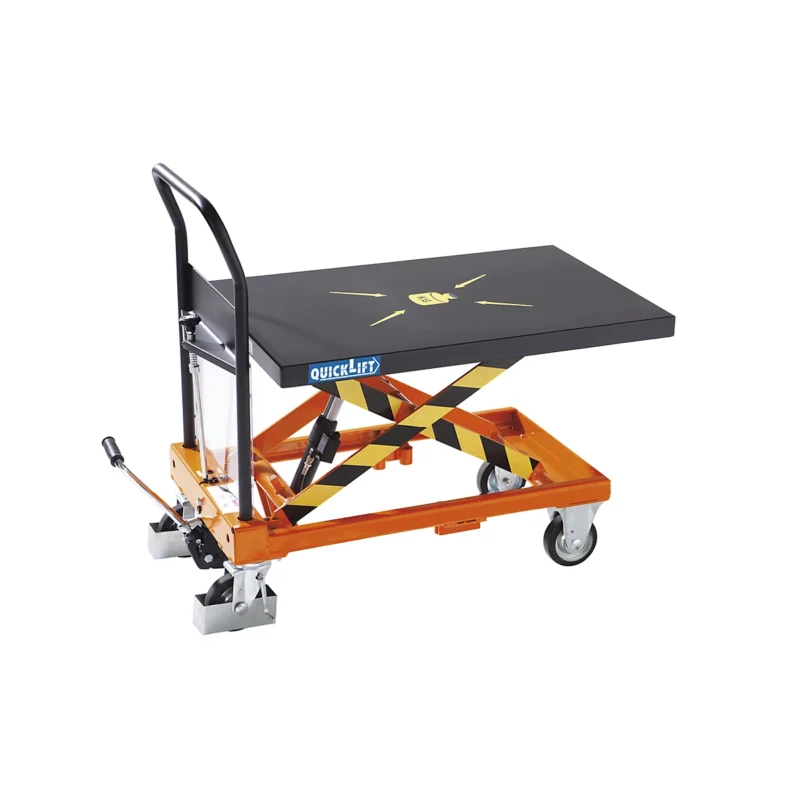

The Scissor Lift Platform Truck is designed for ergonomic lifting and flexible transport of heavy loads in warehouses, workshops, and production areas. Its manual hydraulic QuickLift system ensures fast and effortless lifting, reducing strain and improving workplace efficiency.

Key Features:

✅ Effortless Lifting with QuickLift Technology

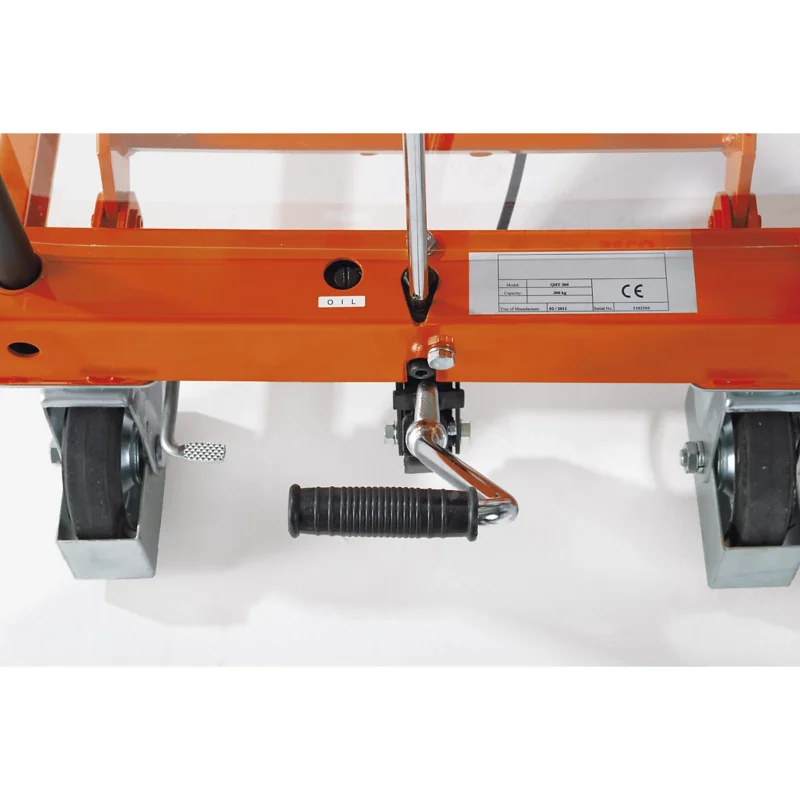

• Pedal-operated hydraulic lift for smooth and controlled height adjustment.
• QuickLift function enables rapid raising of an unloaded platform with minimal effort.
• Manual rotary knob-controlled lowering allows for precise load placement.

✅ Robust & Safe Design

• 800 kg load capacity for handling heavy goods.

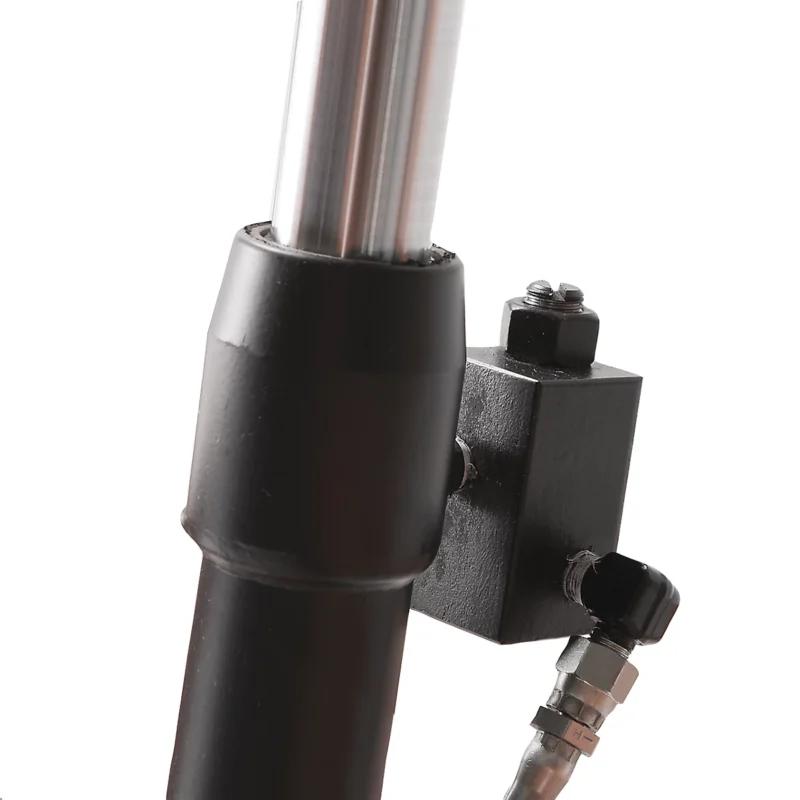

• Hydraulic cylinder with safety valve prevents overload and uncontrolled lowering.
• Two swivel castors with wheel stops and two fixed castors ensure excellent stability and maneuverability.
• Foot guard for additional operator safety in busy environments.

✅ Durable & Smooth Mobility

• Polyurethane wheels offer minimal rolling resistance and protect floors.
• Powder-coated steel construction ensures long-term durability.
• Inspection supports included for easy maintenance.

Technical Specifications:

• Max. Load Capacity: 800 kg
• Lifting Range: 360 – 1070 mm

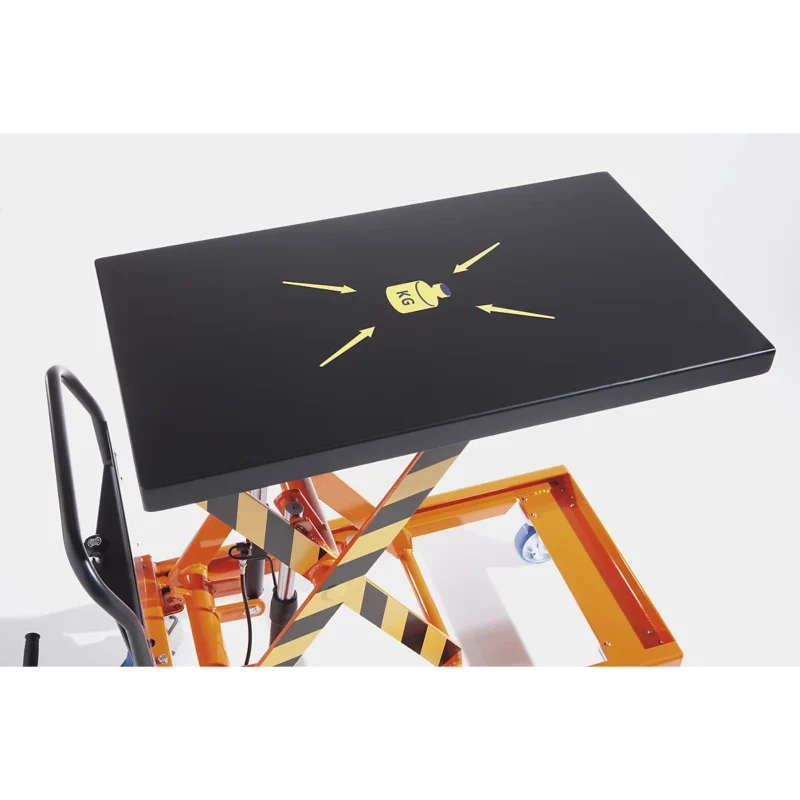

• Platform Dimensions: 1000 mm (L) × 600 mm (W)
• Overall Dimensions: 1250 mm (L) × 600 mm (W)
• Push Handle: Rigid, Powder-Coated
• Lift Per Pump Stroke (QuickLift): 19 mm
• Lift Per Pump Stroke (Standard): 11 mm
• Lift Drive: QuickLift Hydraulic Cylinder
• Wheel Material: Polyurethane (non-marking)
• Wheel Diameter: 150 mm
• Wheel Fittings: 2 Swivel Castors with Wheel Stops, 2 Fixed Castors
• Frame Material: Powder-Coated Steel
• Frame Colour: Pure Orange (RAL 2004) / Black
• Weight: 125 kg
• Feature: Mobile, Manual
• Supplied: Assembled
