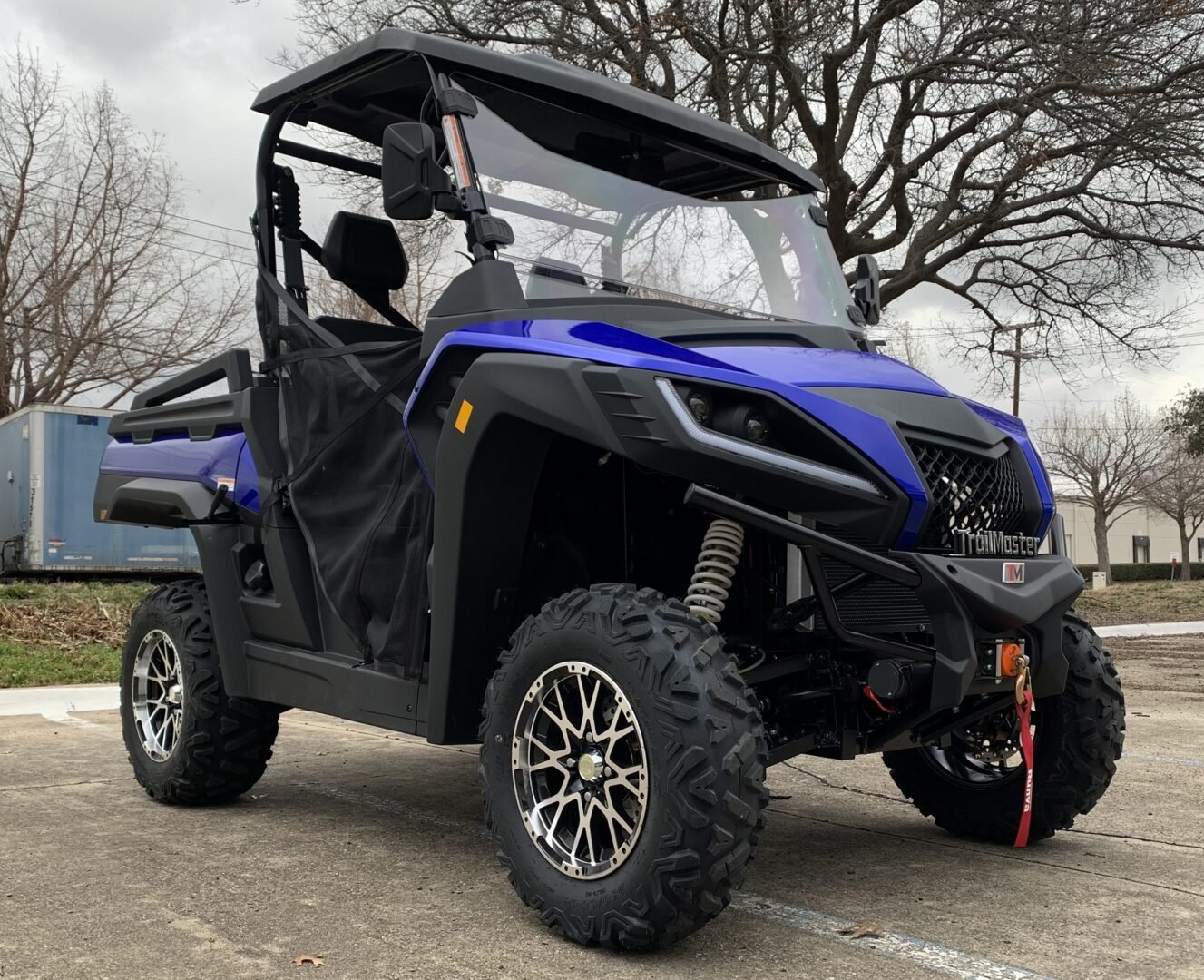

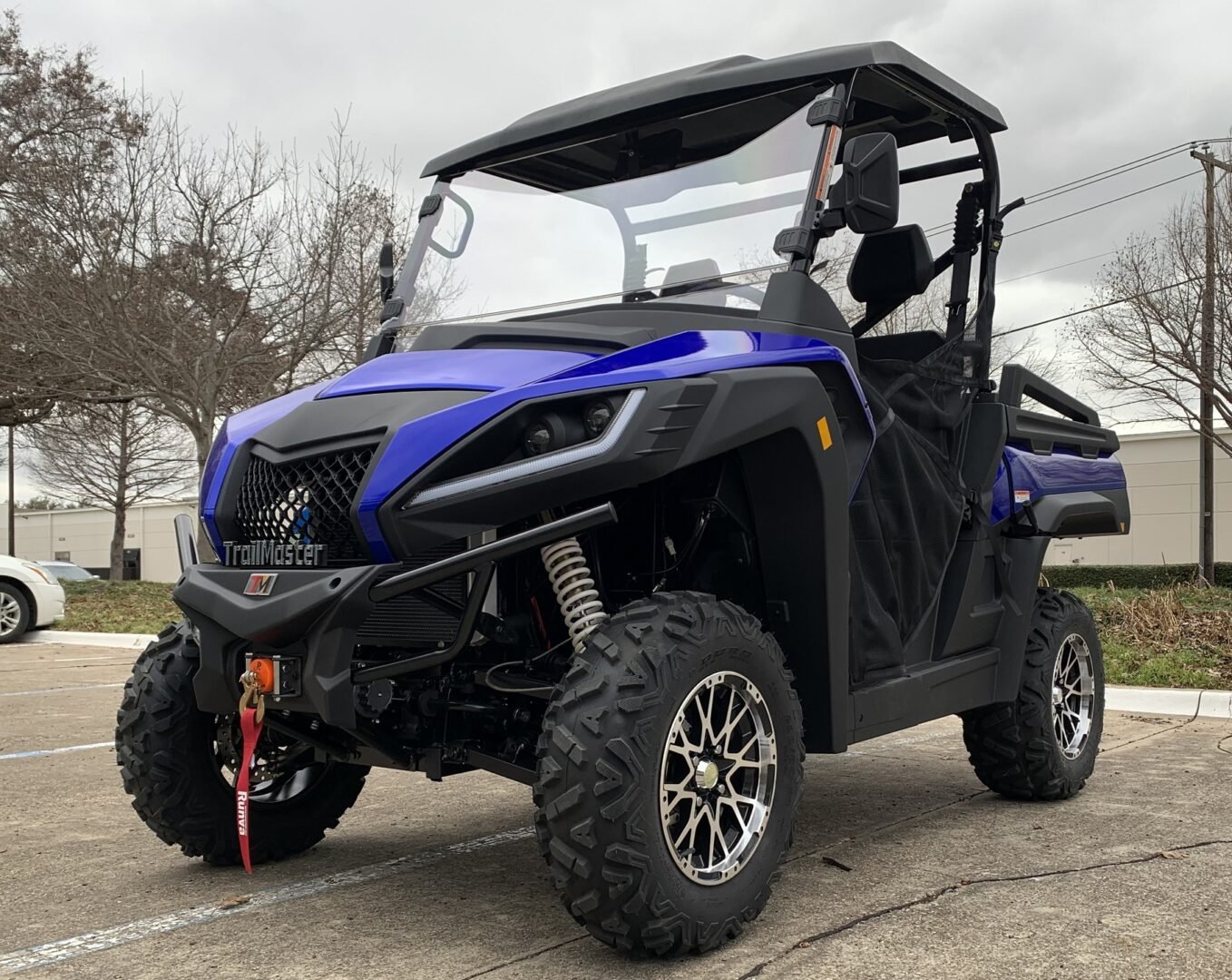

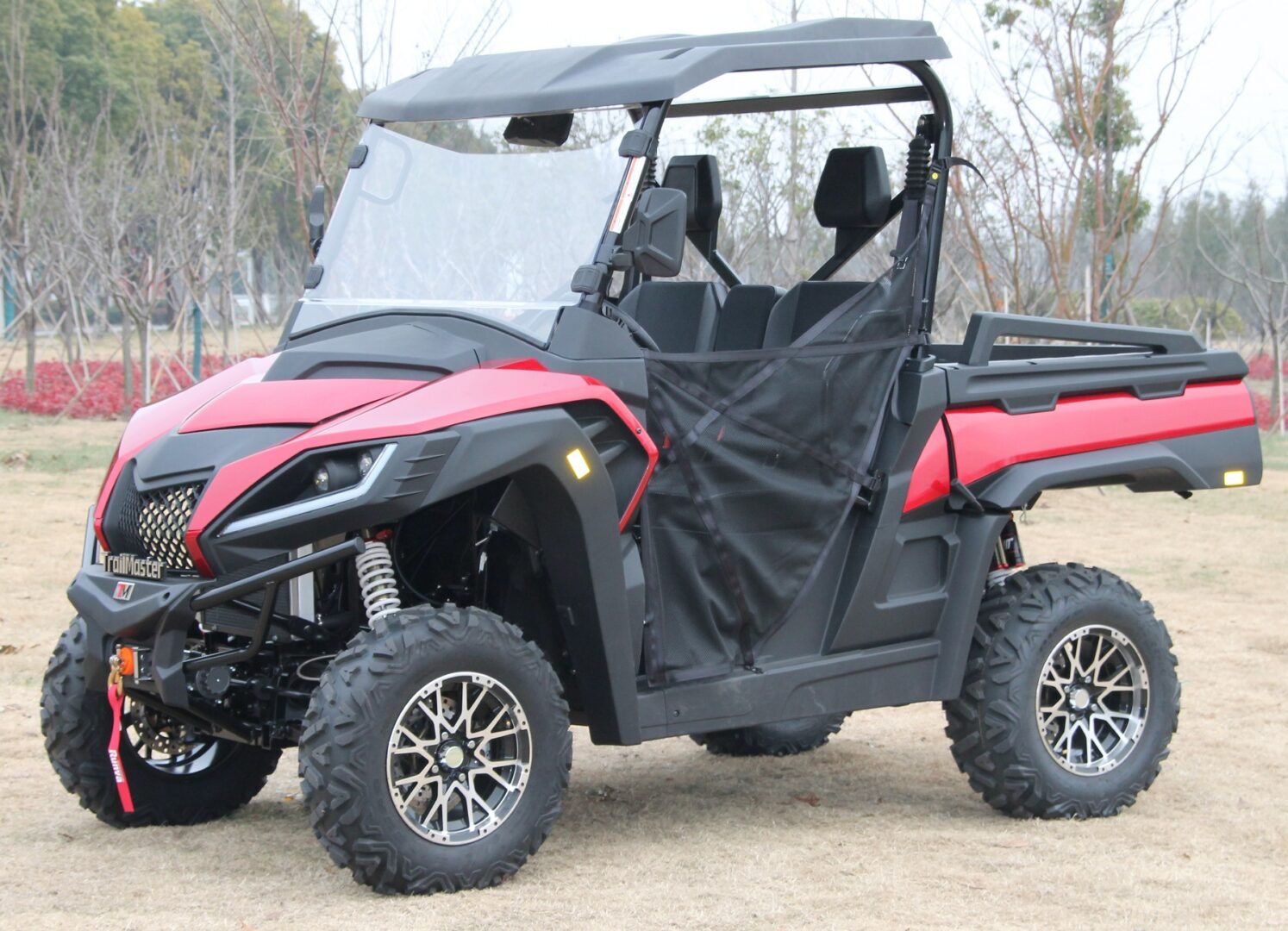

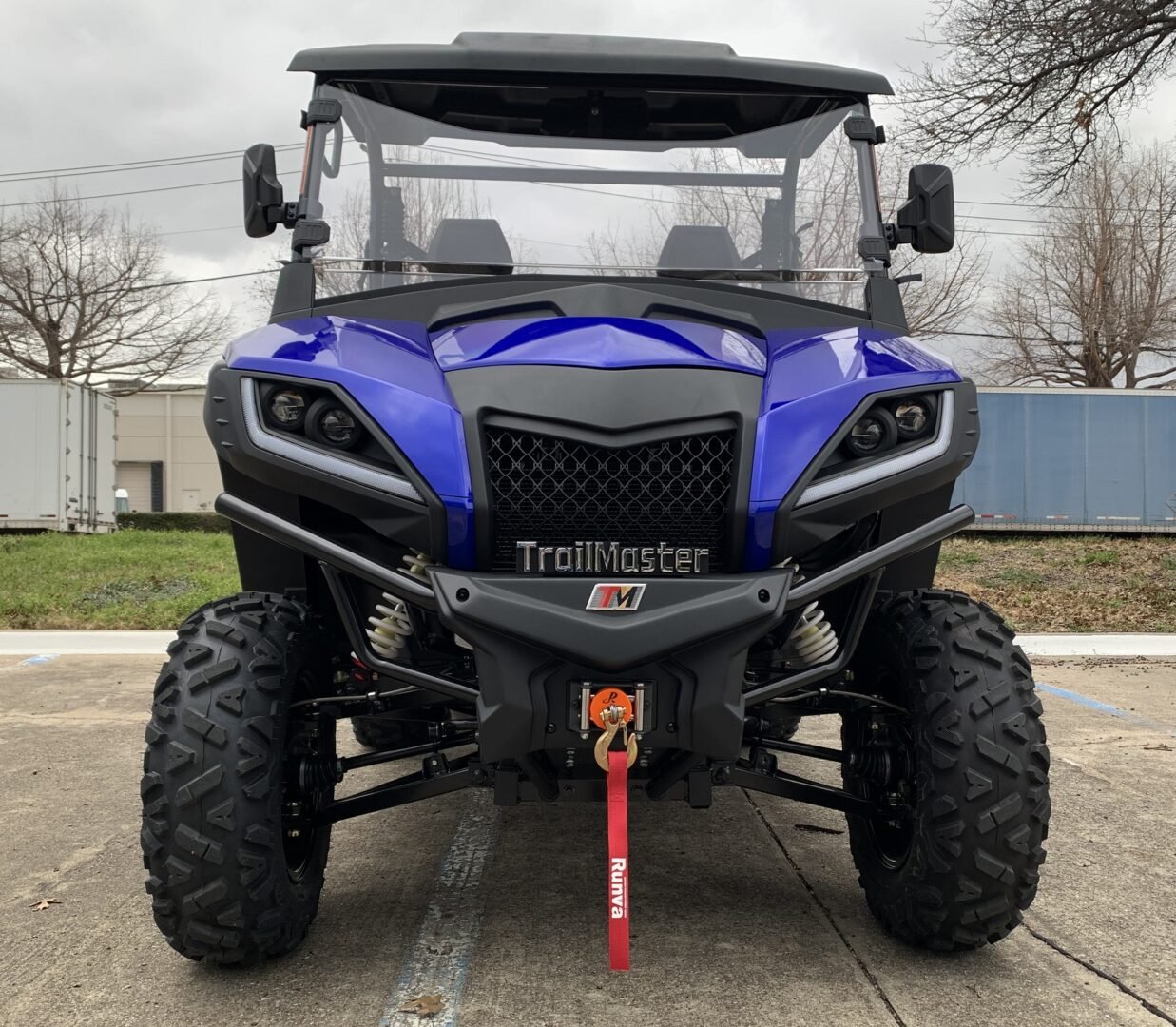

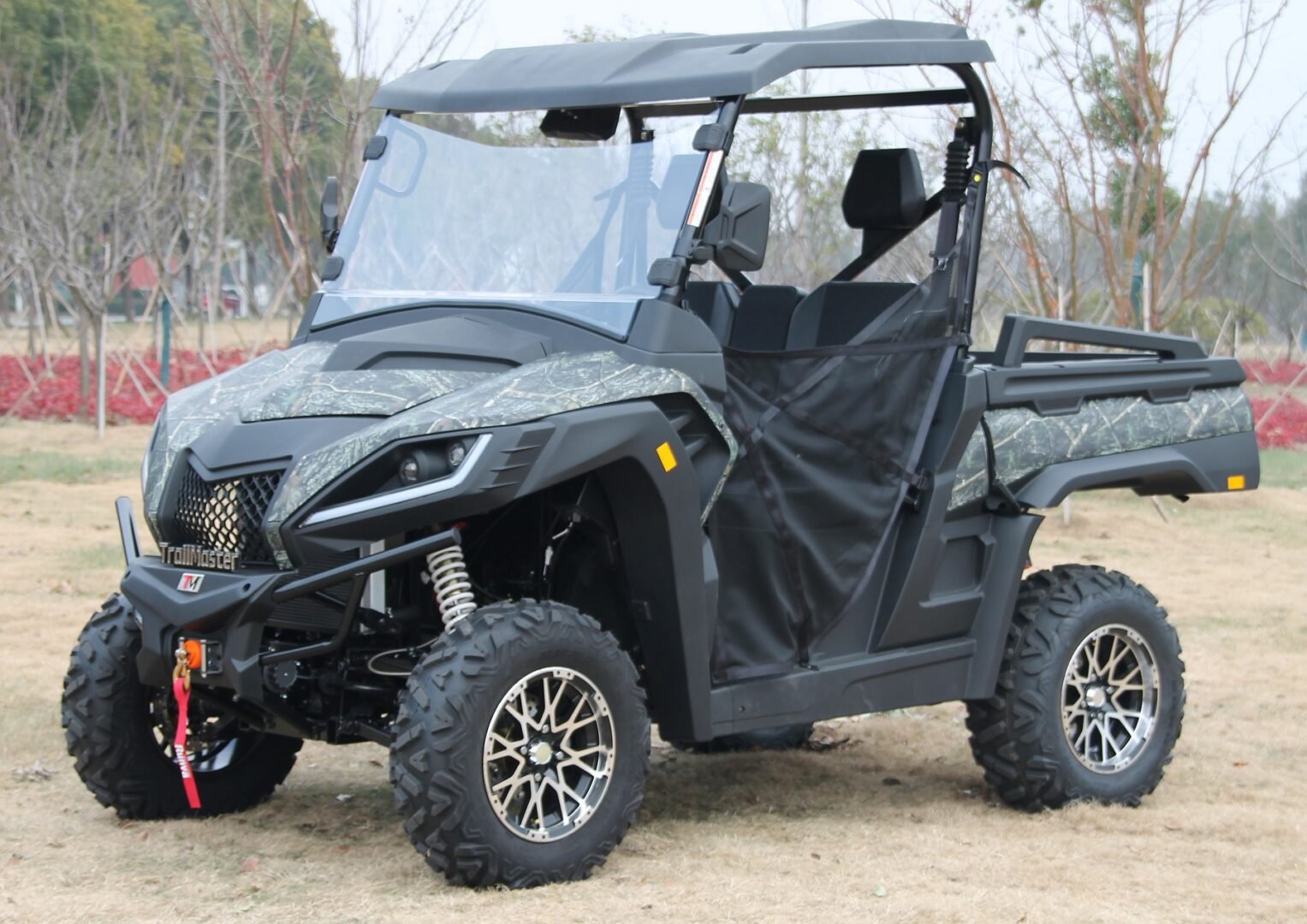

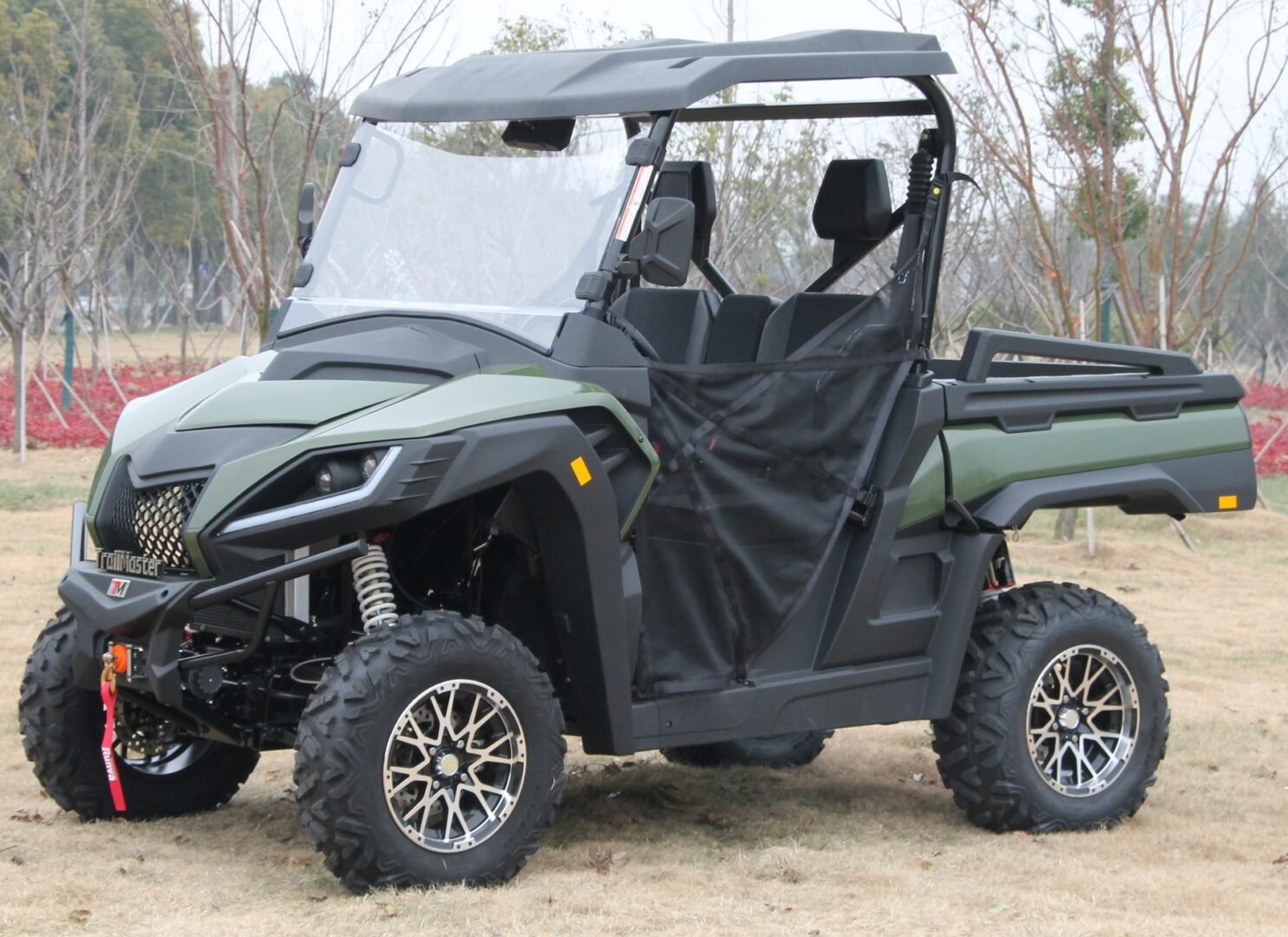

TrailMaster Panther 550 EFI UTV, Automatic Transmission, Heavy-Duty Suspension, Locking Differential & Digital Speedometer For Sale

Key Features

✅ High-Performance 498.6cc EFI Engine – Liquid-cooled 34 HP motor with 24 kW output
✅ 4WD System with Locking Differentials – Exceptional traction & control on rugged terrain
✅ Automatic Transmission (L-H-N-R) – Smooth handling with locking differential
✅ Heavy-Duty Suspension – Front MacPherson & Rear Dual A-Arm independent suspension
✅ Top Speed: 50 MPH – High-speed capability for off-road thrills
✅ 30° Climbing Ability – Handles steep inclines with full load
✅ Large Off-Road Tires – Front: 26×9-14 | Rear: 26×11-14
✅ Built for Utility & Work – Dump bed (550 lbs capacity) & 820 lbs towing
✅ Safety & Comfort – Bench seat for 3, safety harness, sporting steering wheel
✅ LED Lighting & Digital Dash – Hi/Lo beam LED headlights, speedometer & odometer
✅ Fully Equipped – Windshield, winch (3000 lbs), turn signals, horn, mirrors, & 12V power outlet
✅ Convenient Storage – Large under-seat storage & flip cup holder
✅ Rugged Durability – Polished aluminum wheels & front bumper

Technical Specifications

Engine & Drivetrain

• Engine Type: 4-Stroke, Single Cylinder, Liquid-Cooled
• Displacement: 498.6cc
• Compression Ratio: 10.2:1
• Max Horsepower: 34 HP
• Max Power: 24 kW @ 6300 RPM
• Max Speed: 50 MPH
• Climbing Ability: 30°
• Ignition: ECU
• Fuel System: EFI (Electronic Fuel Injection)
• Starting System: Electric
• Battery: 12V 30Ah
• Engine Oil: SAE 15W-40

Transmission & Suspension

• Transmission: Automatic (L-H-N-R) with Locking Differential
• Drive Train: Shaft Drive, 2WD-4WD
• Drive Mode: 4WD with Front & Rear Differential Lock
• Front Suspension: MacPherson
• Rear Suspension: Dual A-Arm

Braking & Tires

• Front Brakes: Hydraulic Disc
• Rear Brakes: Hydraulic Disc
• Front Tires: 26×9-14
• Rear Tires: 26×11-14
• Wheels: Polished Aluminum

Dimensions & Capacities

• Fuel Tank Capacity: 7.93 gal
• Max Load Capacity: 1000 lbs
• Dump Bed Capacity: 550 lbs
• Towing Capacity: 820 lbs
• Vehicle Weight: Net Weight: 1386 lbs (628 kg)
• Wheelbase: 74 in
• Ground Clearance: 11.4 in
• Seat Height: 18.9 in (from floorboard to seat)
• Overall Dimensions (L × W × H):
  • Inches: 120.6 × 63.7 × 80.7
  • Millimeters: 3063 × 1617 × 2049
• Dump Bed Size: 48 × 36.4 × 11.8 in
