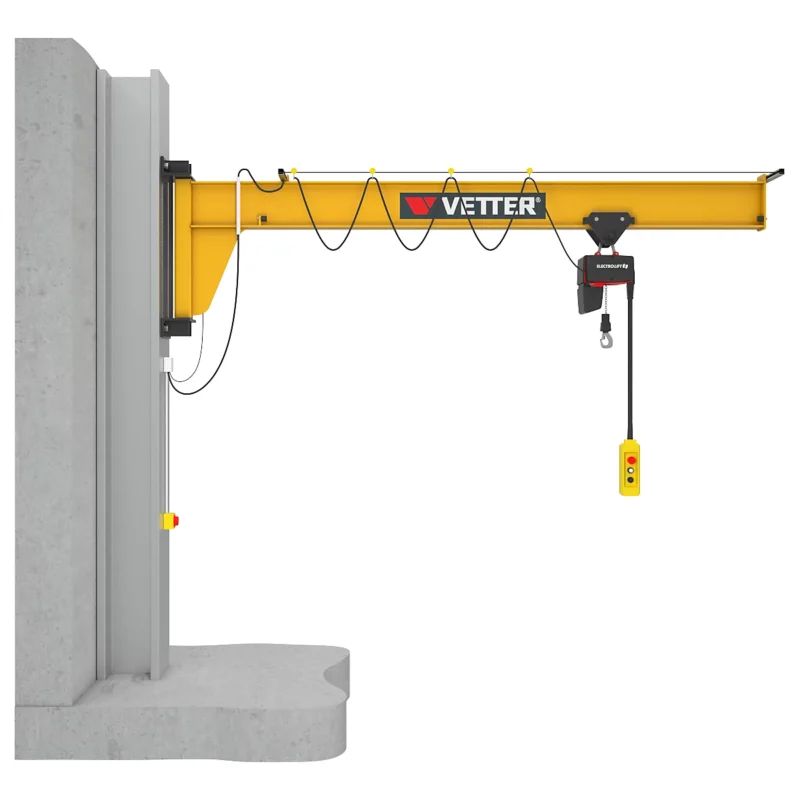

Assistent Aw Wall Mounted Jib Crane – Vetter For Sale
This Wall Mounted Jib Crane offers a robust, space-efficient design ideal for narrow or confined spaces, making it perfect for light industrial tasks. With its adjustable stabilizing arm, the crane easily adapts to your lifting needs, providing flexibility in tight working areas.
Key Features:
✅ Variable Stabilizing Arm Length – Tailors to your specific lifting requirements
✅ 180° Swivel Range – Allows for easy, multi-directional lifting and positioning
✅ Compact Design – Ideal for narrow and small spaces
✅ Wall-Mounted – Can be attached to steel supports, reinforced concrete, or steel constructions
✅ EU-Compliant Construction – Conforms to EN regulations for light industrial use
✅ Steel Shot Blasted & Yellow RAL 1007 – Durable and visually identifiable
Included in Delivery:
- Standard electrical system with lockable mains cut-off switch
- Power supply to hoist with round trailing cable
- Dolly buffers (front and back)
- Wall-mounted jib crane with bearing brackets (mounting screws not included)
- Detailed documentation for easy installation
Note: Chassis and electric chain hoist are not included.
Technical Specifications:
- Max. Load: 1000 kg
- Operating Voltage: 400 V / 50 Hz
- Swivel Range: 180°
- Reach: 3000 mm
- Height of Lifting Gear: 573 mm
- Bracket Module: B
- Flange Width: 120 mm
- Horizontal Force Max.: 48 kN
- Vertical Force Max.: 12 kN
- Priming Coat: Daffodil Yellow RAL 1007
- Weight: 184 kg
- Design of Rotary Crane: Without Electric Chain Hoist
- Supplied: Flat pack
