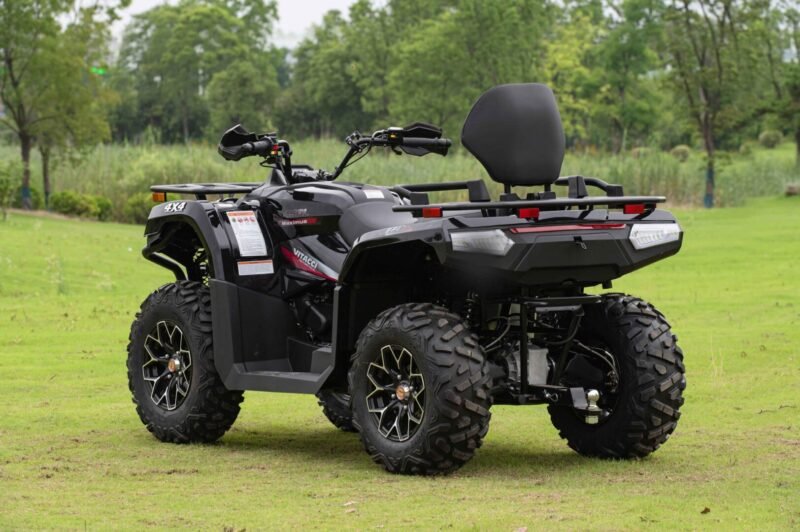

Vitacci Maximus 450L 4×4 ATV – Power, Precision, and Versatility

The Vitacci Maximus 450L 4×4 ATV is designed for off-road enthusiasts who demand both power and versatility in a machine. Equipped with a 391cc single-cylinder, 4-stroke engine featuring Electronic Fuel Injection (EFI) and water cooling, this ATV is ready to take on a variety of terrains, delivering solid performance and fuel efficiency.

Key Features and Highlights

• Engine & Performance:
  The 391cc single-cylinder engine provides a balance of power and efficiency, delivering 20kW of power at 6500rpm and 30Nm of torque at 5000rpm. The EFI system ensures smooth power delivery while the water cooling keeps the engine performing at optimal temperatures even under heavy loads. With a top speed of over 80 km/h, the Maximus 450L is built for speed and durability.

• Transmission & Drive:
  The CVT (Continuously Variable Transmission) with a belt drive offers smooth and efficient power transfer to the wheels, ensuring consistent performance and easy handling. The 4WD system guarantees superior traction on all types of rough and uneven terrain, making it an excellent choice for off-road adventures.

• Suspension & Brakes:
  The double A-arm independent suspension at both the front and rear, with coil spring + oil damping, provides excellent ride comfort and stability even on rocky or bumpy trails. The front and rear disc brakes ensure reliable stopping power in all conditions, adding to the ATV’s overall safety and control.

• Utility & Design:
  With 25×8-12 tires and a ground clearance of 250mm, the Maximus 450L is built to handle rough, uneven terrain with ease. Its robust design allows it to carry a loading capacity of up to 240kg, and it can tow up to 585kg when using a trailer with a brake system.

Vehicle Specifications

Engine & Performance

• Engine Type: Single Cylinder, 4-Stroke, Water-Cooled, EFI
• Displacement: 391cc
• Bore x Stroke: 82mm x 74mm
• Max Power: 20kW at 6500rpm
• Max Torque: 30Nm at 5000rpm
• Compression Ratio: 10:1
• Fuel Supply Mode: Electronic Fuel Injection
• Ignition Control Mode: ECU
• Transmission Type: CVT / Belt
• Drive System: 4WD

Dimensions & Weight

• Dimensions (L×W×H): 2315mm x 1144mm x 1340mm
• Wheelbase: 1460mm
• Ground Clearance: 250mm
• Weight: 353kg
• Loading Capacity: 240kg
• Fuel Tank Capacity: 17L
• Towing Capacity:
  • Without Brake System: 250kg
  • With Brake System: 585kg
• Top Speed: >80km/h

Suspension & Brakes

• Front/Rear Suspension: Double A-arm independent suspension
• Front/Rear Shocks: Coil Spring + Oil Damping
• Braking System: Front and Rear Disc Brakes
• Differential & Lock:
  • Front Axle Differential
  • Rear Axle with Optional Differential Lock

Tires & Wheels

• Front Tire: 25×8-12
• Rear Tire: 25×10-12

Conclusion

The Vitacci Maximus 450L 4×4 ATV is a rugged, high-performance ATV designed for off-road adventures, farm work, and recreational use. With its powerful 391cc engine, 4WD system, reliable disc brakes, and superior suspension, the Maximus 450L delivers on performance, comfort, and utility. Whether you’re tackling trails, hauling loads, or towing, this ATV is a true workhorse, built to handle a variety of off-road tasks with ease and reliability.
