Platform lift without support legs For Sale

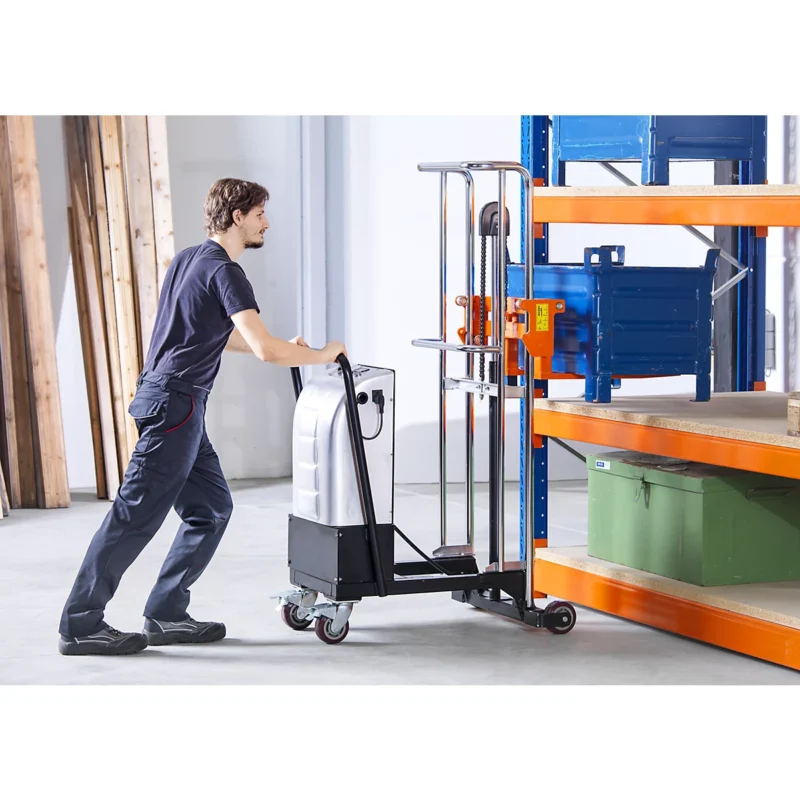

The electric platform lift without support legs is an ergonomic, high-performance lifting solution, designed for logistics, production, and warehouse environments. Featuring a free-hanging adjustable fork, it provides exceptional manoeuvrability and efficiency when handling goods and workpieces.

Key Features:

✅ Powerful Electric Lifting

• Effortless lifting & lowering with electric control ⚡🔼🔽
• Lifting range: 20 – 1400 mm
• Reduces physical strain & risk of injury for workers

✅ Versatile & Space-Saving Design

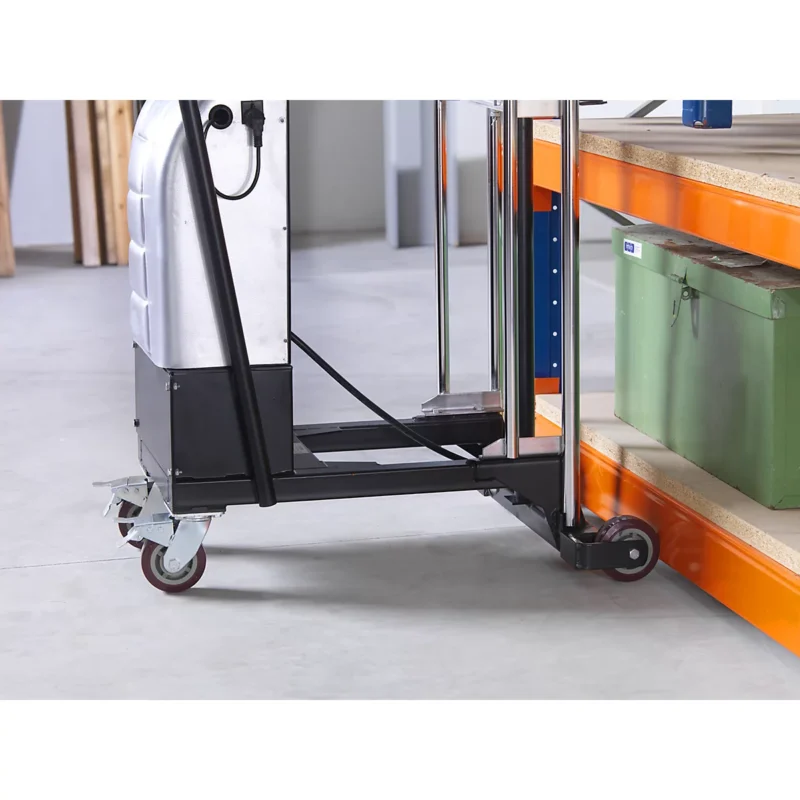

• No support legs → Easily moves close to shelves & machines
• Adjustable fork width (155 – 550 mm) for handling various load sizes
• Flat fork design → Seamless pickup of pallets & flat loads

✅ Compact & Easy to Use

• Small turning circle for tight spaces & confined areas
• User-friendly control panel for precise lifting
• Low access height (20 mm) → Ideal for sliding under low-clearance loads

✅ Robust & Durable Build

• Powder-coated steel frame for longevity & durability 🏗️
• Nylon wheels for smooth movement & floor protection
• Battery-powered operation for wireless convenience

Technical Specifications:

• Max. Load: 250 kg
• Lifting Range: 20 – 1400 mm
• Load Centre: 275 mm
• Fork Length: 550 mm
• Distance Across Forks: 155 – 550 mm
• Fork Width: 70 mm
• Clearance Height: 20 mm
• Material: Steel
• Finish: Powder Coated
• Colour: Pure Orange (RAL 2004)
• Battery: 12V / 60Ah
• Battery Charger: 230V / 12V, 8A
• Wheel Diameter: 150 mm
• Wheel Material: Nylon

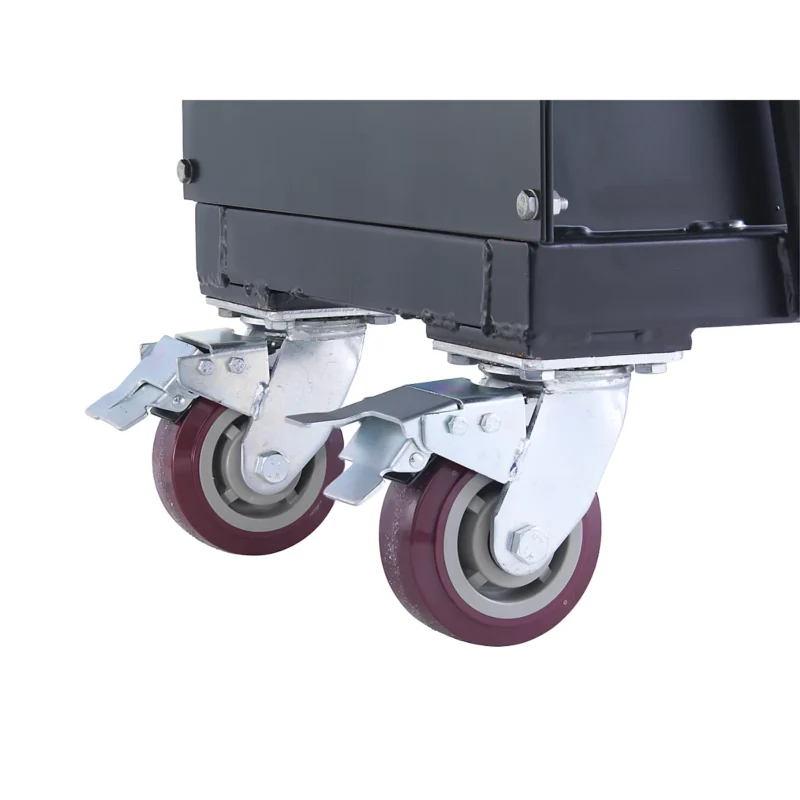

• Wheel Fittings: 2 Swivel Castors with Wheel Stops, 2 Fixed Castors
• Dimensions (LxWxH): 1565 x 775 x 1765 mm
• Weight: 230 kg
• Supplied: Assembled
