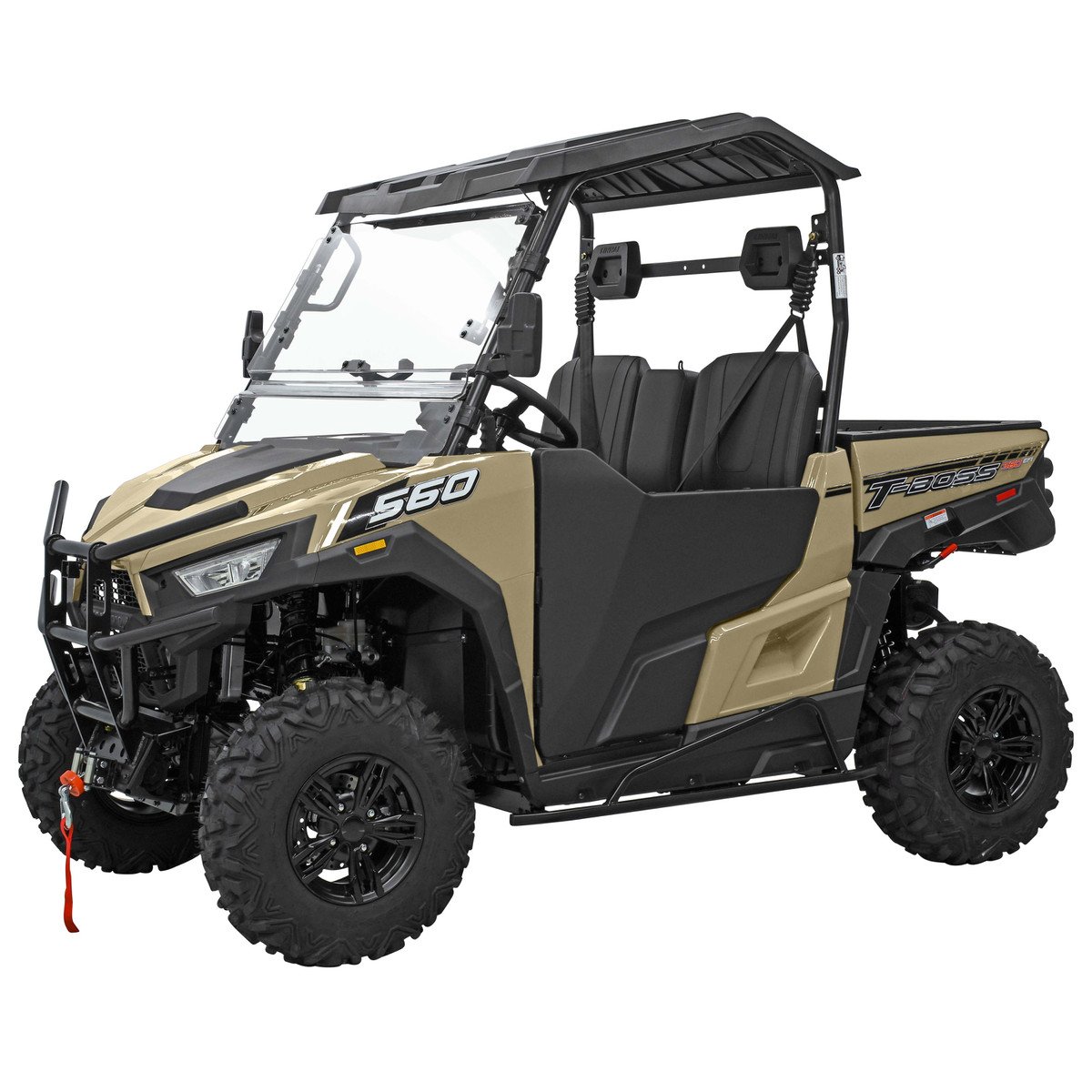

Massimo Tboss 560 4×4 EFI: Sport UTV with Powerful Engine, Full Windshield, and Winch For Sale

Where the work ends and adventure begins, the Massimo T-BOSS 560 is the ultimate sport utility UTV designed to tackle tough terrain while keeping you comfortable and in control. Whether you’re at the deer lease, high pass, or on the trails, this UTV blends power, durability, and innovation to handle it all.

Powered by a 493cc liquid-cooled EFI engine delivering 33 HP, the T-BOSS 560 features on-demand 4WD with a locking differential, ensuring optimal traction across mud, rocks, and hills. Its tilting full windshield, hard top roof, and ABS half doors provide all-weather protection, while rock sliders and A-arm guards shield against tough trails.

With a 1,200 LB towing capacity and a 3,000 LB front-mounted winch, you’re ready for any challenge, from hauling heavy loads to pulling yourself out of sticky situations. The 10-inch touchscreen with front & rear cameras offers an industry-leading tech experience, enhancing visibility and convenience.

TOP FEATURES

✅ 33 HP Liquid-Cooled EFI Engine – Reliable power for work & play
✅ On-Demand 2WD/4WD with Locking Differential – Superior traction control
✅ 10-Inch Touchscreen Display with Front & Rear Cameras – Advanced visibility & functionality
✅ Tilting Full Windshield & Hard Top Roof – Protection from the elements
✅ Solid ABS Half Doors & Rock Sliders – Safety and durability on rough terrain
✅ Aluminum Alloy Wheels – Rugged and stylish design
✅ 3,000 LB Front-Mounted Winch – Heavy-duty pulling capability
✅ LED Headlights – Bright, energy-efficient lighting
✅ 9.25” Ground Clearance – Smooth navigation over obstacles
✅ 1,200 LB Towing Capacity – Built for hauling heavy gear

VEHICLE SPECIFICATIONS

Dimensions & Capacity
🔸 Overall Size (L x W x H): 103.5″ × 54″ × 76″
🔸 Wheelbase: 72″
🔸 Ground Clearance: 9.25″
🔸 Dry Weight: 1,157 lbs
🔸 Fuel Capacity: 6.9 gallons
🔸 Seat Height: 33.5″
🔸 Towing Capacity: 1,200 lbs

Engine & Powertrain
🔸 Engine Type: Four-Stroke SOHC Single Cylinder
🔸 Displacement: 493cc
🔸 Horsepower: 33 HP
🔸 Cooling System: Liquid-Cooled
🔸 Transmission: Automatic CVT R/N/L/H
🔸 Drive Train: Shaft-Driven On-Demand 2WD/4WD with Locking Differential
🔸 Fuel System: Electronic Fuel Injection (EFI)

Suspension & Wheels
🔸 Front Suspension: Double A-Arm with Adjustable Preload
🔸 Rear Suspension: Double A-Arm with Adjustable Preload
🔸 Wheels & Tires: Aluminum Alloy Wheels with Rugged All-Terrain Tires

Brakes & Safety
🔸 Front Brakes: Hydraulic Disc Brakes with Drilled & Slotted Rotors + Single Piston Calipers
🔸 Rear Brakes: Hydraulic Disc Brakes with Drilled & Slotted Rotors + Single Piston Calipers

Additional Features
🔸 Side Mirrors & Fender Flares
🔸 Front & Rear A-Arm Guards
🔸 Integrated Seat Storage & Headrests
🔸 Cup Holders for Added Convenience
